Product Name:

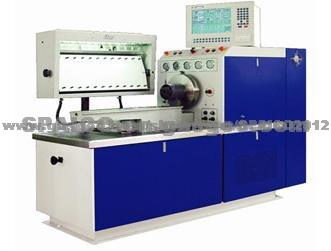

ADM700A Test Bench For Mechanical Pump SHYD006
Product Attribute:
Output Power:5.5,22,11,15,18.5,22kw
Output Voltage:415.380.220v
Length:2m
Width:1.0.6m
Height:1.8m
Application:
For mechanical pump
Product Description:
Function:
1.fuel delivered from each cyclinder on any speed can be tested.
2.speed,temperature,counter,pressure,rack meter can be displayed on the computer of test bench.
3.controller by the digital control unit or computer.
4.15',17'CRT or LCD monitor.
5.directly driven by motor,variable frequency stepless speed regulation.
6.static inspection on the delivery time of each cyclinder.
7.inspection on performance of the mecahnical governor.
8.inspection on perfromance of the solenoid valve of VE pump.
9.inspection on perfromance of the pneumatic governor.
10.inspection on the performance of the pressure compensator.
11.oil returned volume of disribute pump.
12.inspection on the inner pressure o fthe VE pump.
13.inspection on performance of the minus pressure of pneumatic governor.
14.inspection on pump body sealing performance.
specification:
1Motor power:5.5,7.5,11,15,18.5,22kw
2.Power supply voltage:415,380,220v
3.Power supply frequency:50/60hz
4.Protection level:IP54
5.Speed range :0-4000rpm
6.Counter setting range:0-9999
7.Tempreture setting range: 0-80C
8.Center height of driving shaft:125mm
9.DC power:12/24v
10.Diameter of the Driving connector:120mm
11.Measuring tube: 45ml,150ml,260ml,(optional)
12.Number of measuring cylinder:6,8,12
13.Oil supply pump10L/min
14.Oil supply pressure: High pressure:0-40bar;low pressure:0-4bar
15.Oil tank cubage:60L
16.Pressure meter:Low pressure:0-6bar;high pressure:0-60bar;inner pressure: 0-16bar; vaccum pressure:-1-2.5bar;oil meter:0-10bar
17.Heat power:2kw
18.Tempreture controlled range:30-65C
19.Size:2000*1060*1800mm
20Weight:950kg
