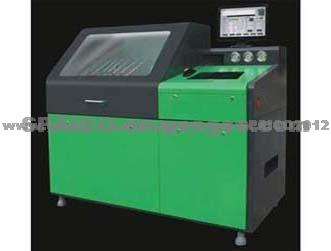

CR-709 ALL–IN-ONE TEST BENCH SHYD004

Product Name:

CR-709 ALL–IN-ONE TEST BENCH SHYD004

Product Attribute:

Output Power:11,15kw

Output Voltage:380v

Length:1.76m

Width:0.83m

Height:1.65m

Application:

For common rail injector and common rail pump.

Product Description:

A---Functions:
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.
3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling, pre-injection and Emission status.
4. Cleaning the injectors while testing.
5. Testing 4-6 oil injectors in one setup.
6. Test electronic high pressure pump VP37 and VE37.
7.Testing pump nozzle & electronic unit pump by additional programming system & adaptor.
8.User can add and edit the data by themselves.
9.Save and print the testing results & customer information.
B---Characteristics:
1.Full-automatic operation procedure, save the time to set up the data.
2. High import configuration: takes up 50% of equipment cost.
3. China-made flow Meter.
4. Remote control is convenient for software upgrading and after-sale service.
5. Support Multi-language.
C---Main technical parameters:
1. Rated output power: 11KW, 15KW optional
2. Oil pump rotation speed: 0-3500rpm
3. Test rang of rail pressure: 0-2000bar
4. Test precision of rail pressure:±0.6Mpa
5. Test precision of flow sensor: 0.6%
6. Temperature of test oil:40±2
7. Filter precision of test oil: less than 5
8. Capacity of tank: 80L
9. Dimension: 1760X830X1650MM
10. Aggregate weight: 800KG
11. Electricity: 380V, 50Hz, 3 phase
